Talaria XXX Plug and Play Key ignition

Ditch the Talaria XXX's RFID card for a real key. The Forged Racing plug-and-play key ignition connects straight to the stock harness through a dual connector, so there's no cutting, splicing or sanding. It's the RFID delete most XXX owners want, done the clean way.

Fitment

Made for the XXX and XXX Pro only, for use with the stock plastic ignition cover.

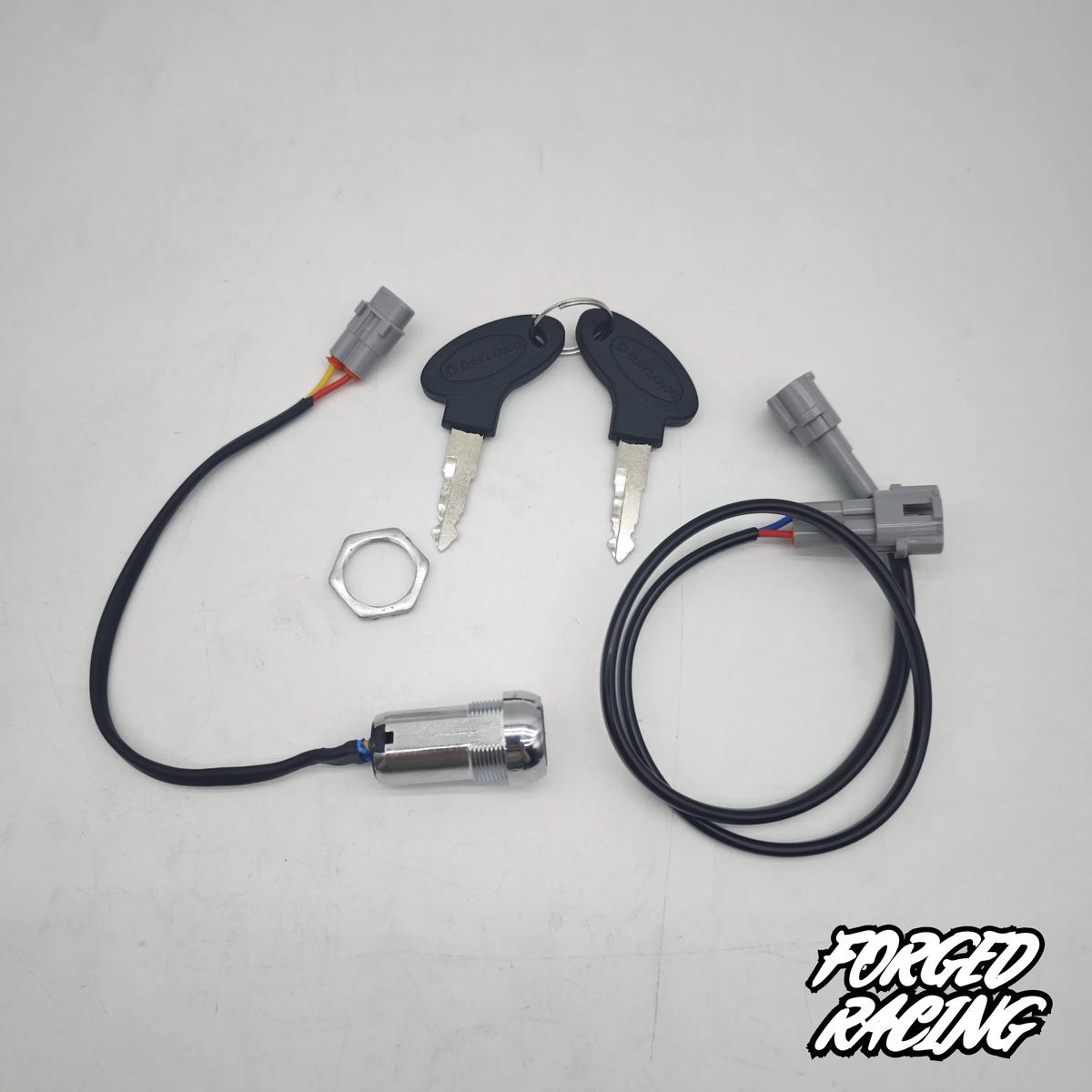

What's in the box

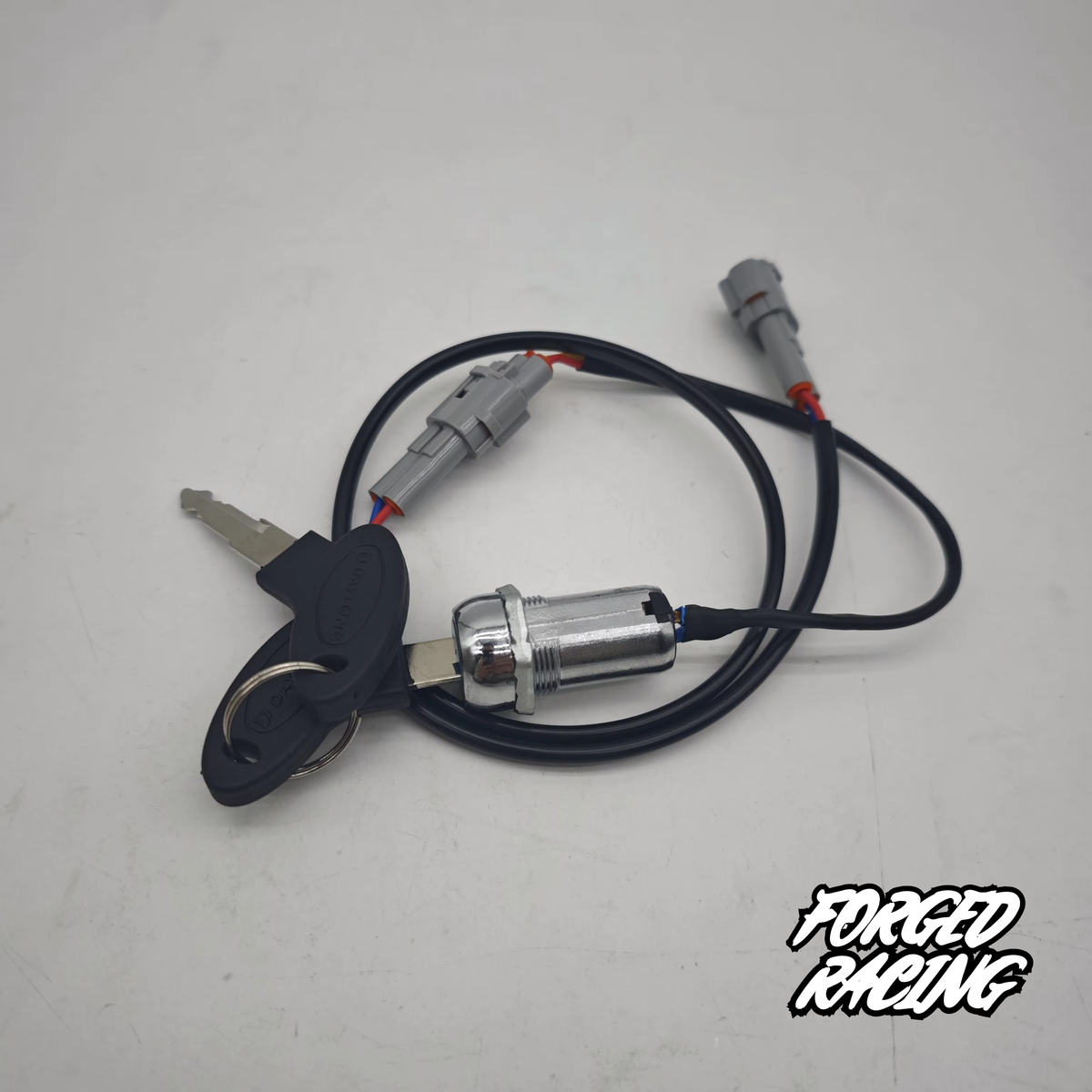

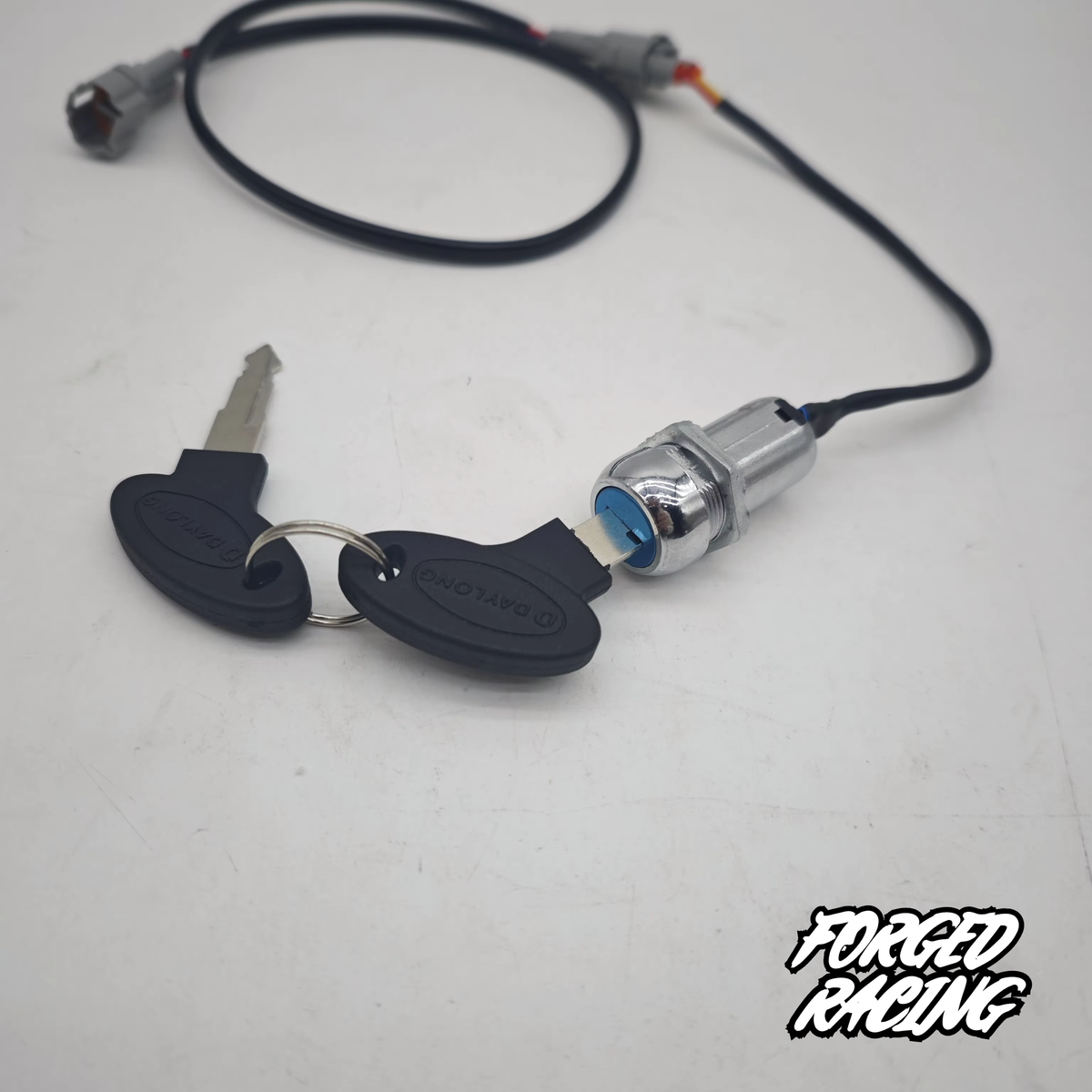

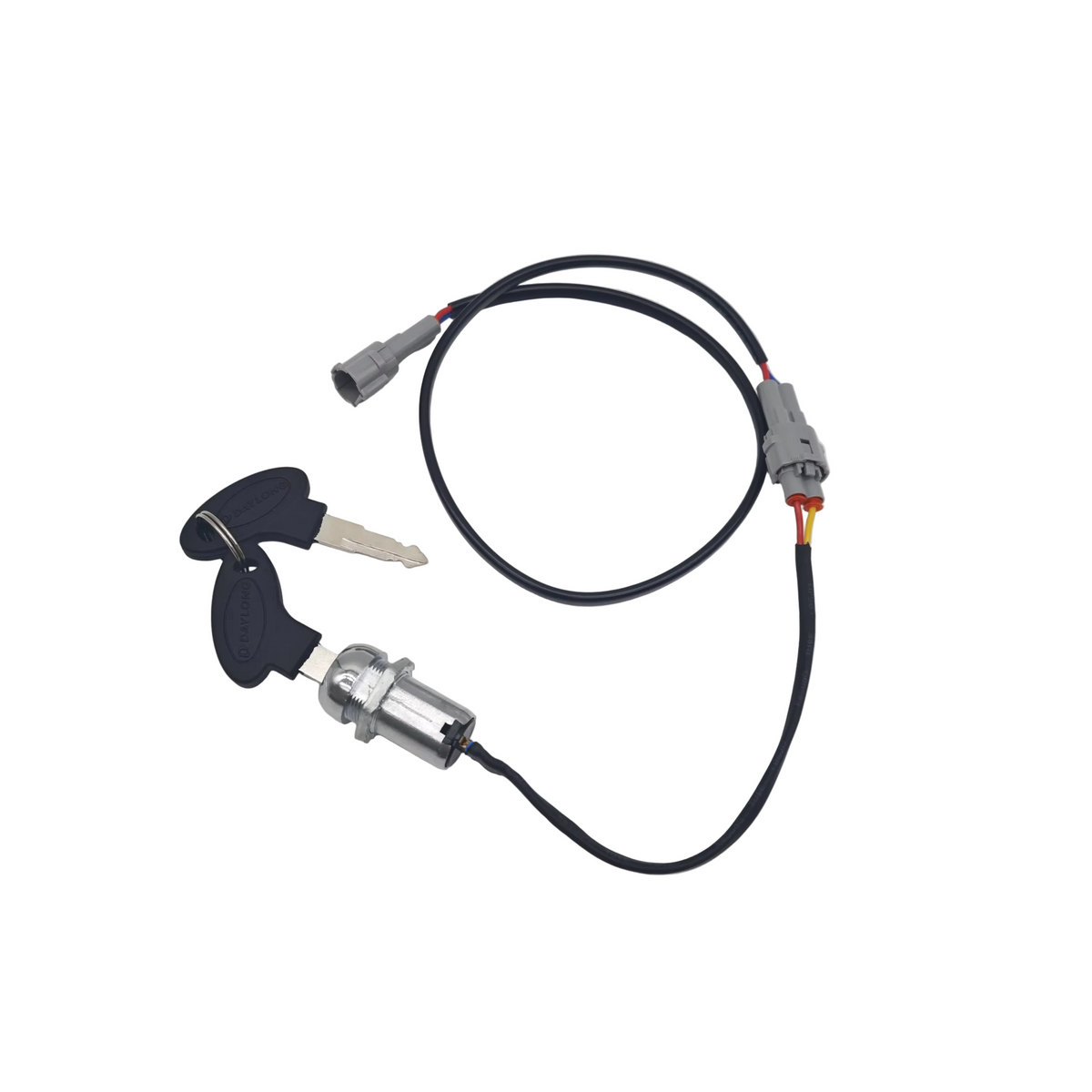

• Key ignition switch with dual-connector harness
• 2 black keys
• Install spacer
• Blue titanium-look protective cover (peels off if you'd rather run it bare)

Why riders choose it

• True plug and play. It plugs into the grey connector your RFID unit uses. No wiring changes.
• Dual connector design. It fits without sanding or trimming, which some other ignitions need.

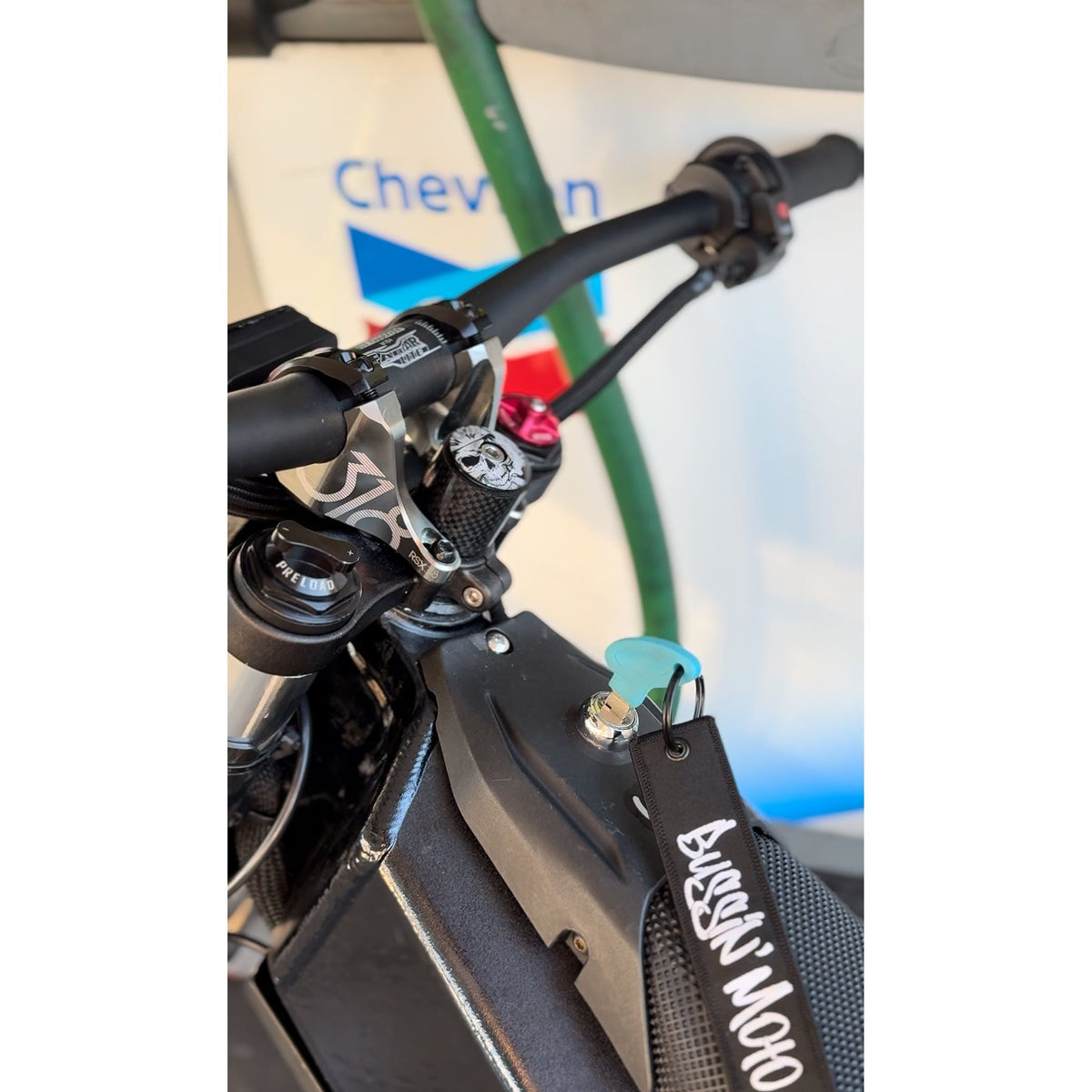

• Cleaner cockpit. One key instead of a card, and nothing to lose on the trail.

How to install

1. Power the bike off.

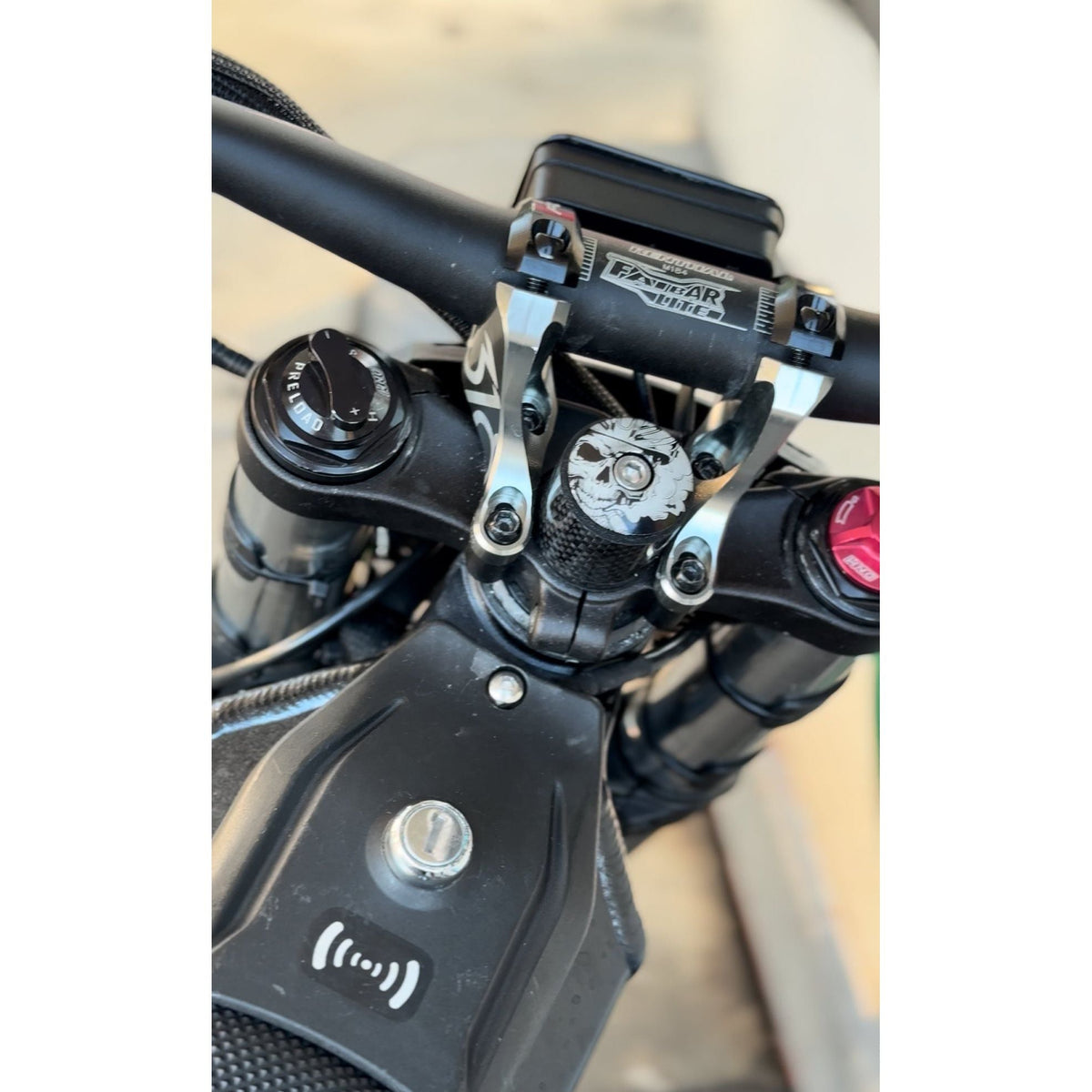

2. Remove the ignition cover and unplug the RFID unit.
3. Fit the key ignition in its place.
4. Remove the left side panel and route the wire behind it.
5. Plug into the grey connector, then reinstall the panel and cover.

Watch the full installation video before you start.

Important: route the wire with some slack and keep it away from pinch points and sharp bends. Keep the ignition out of water.

FAQ

Does it fit the Talaria XXX Pro?
Yes. It fits both the XXX (X3) and the XXX Pro.

Do I need to cut or splice any wires?
No. It plugs into the stock connector.

Can I still use my RFID card afterward?
No. The key replaces the RFID unit. Keep the stock unit if you ever want to switch back.

Is it waterproof?
No. Keep the ignition out of water.

Does it work with an aftermarket ignition cover?
It's designed for the stock plastic cover. Contact support@forged-racing.com before pairing it with anything else.

Installation is at your own risk. By purchasing, you agree to our liability disclaimer.
